1CE30F35S5 EATON VICKERS DANFOSSS |
|
 |
1CE SERIES OVERCENTRE VALVE PILOT ASSISTED RELIEF WITH CHECK 1CE30F35S5 EATON VICKERS DANFOSSS
Room 1005,NO.4,1388 lane,Yungu Road,Jiading,Shanghai
Tel:86-21-59100212
Fax:86-21-59100212
Mobile:86-18701882843
Website:www.dchydraulic.com
Mail:infoshdc@126.com
APPLICATION
Overcentre valves give static and dynamic control of loads by regulating the flow into and out of hydraulic actuators. When installed close to or within an actuator, the overcentre valve will stop runaway in the event of hose burst and if open centre directional
control valves are used, will allow thermal expansion relief of the hydraulic fluid.The overcentre cartridge is ideal for mounting directly into a cavity machined in the body of the cylinder, motor or rotary actuator. The cartridge can also be mounted directly to the ports via a specifically machined body as part of a Hydraulic Integrated Circuit or single unit, or
contained within one of our standard line bodies. Single overcentre valves are normally used when the load is unidirectional, for example an aerial platform or crane and dual overcentre valves are used for controlling loads in both directional for motor applications or for cylinders going over centre.

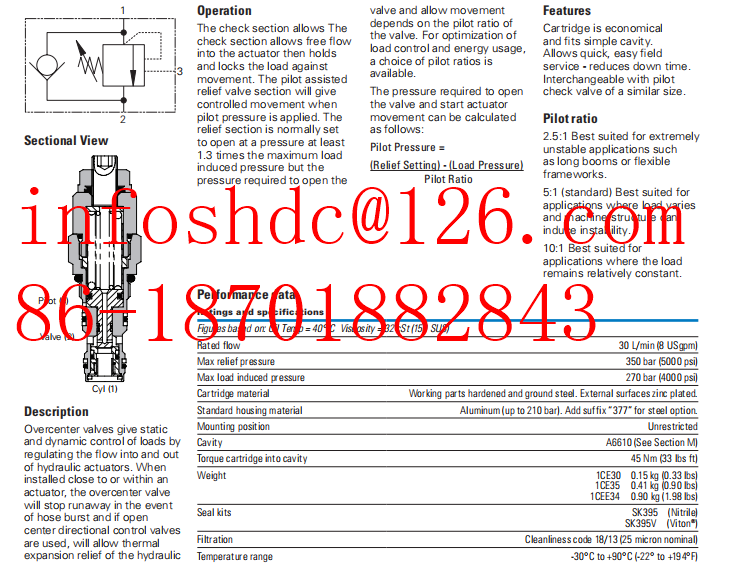

OPERATION
The check section allows free flow into the actuator then holds and locks the load against movement. The pilot assisted relief valve section will give controlled movement when pliot pressure is applied. The relief section is normally set to open at a pressure at least 1.3 times the maximum load induced pressure but the
pressure required to open the valve and allow movement depends on the pilot ratio of the valve. For optimisation of load control and energy usage, a choice of pilot ratios is available. The pressure required to open the valve and start actuator movement can be calculated as follows:
Pilot Pressure = (Relief Setting) - (Load Pressure)
Pilot Ratio
PILOT RATIOS
2.5:1 Best suited for extremely unstable applications such as long booms or flexible frameworks.
5:1 Best suited for applications where load varies(Standard) and machine structure can induce instability
10:1 Best suited for applications where the load remains relatively constant.
FEATURES
Cartridge is economical and fits simple cavity. Allows quick, easy field service - reduces down time. Directly interchangeable with 30 litres/min pilot check valve.
SPECIFICATIONS
Rated Flow ：30 litres/min (8 US GPM)
Cartridge Material：Working parts hardened and ground steel. External surfaces zinc plated
Max Setting：Max Load Induced
Pressure: 270 bar (4000 psi)
Relief Setting:350 bar (5000 psi)
Body Material：Standard aluminium (up to 210 bar*)Add suffix ‘377’ for steel option
Mounting Position:Unrestricted
Cavity Number:A6610
Torque Cartridge into Cavity :45 Nm (33 lbs ft)
Weight：1CE30 0.15 kg (0.33 lbs)
1CE35 0.41 kg (0.90 lbs)
1CEE34 0.90 kg (1.98 lbs)
Seal Kit Number：SK395 (Nitrile) SK395V (Viton)
Operating Temp：-20°C to +90°C
Leakage :0.3 millilitres/min nominal (5 dpm)
Nominal Viscosity Range:5 to 500 cSt

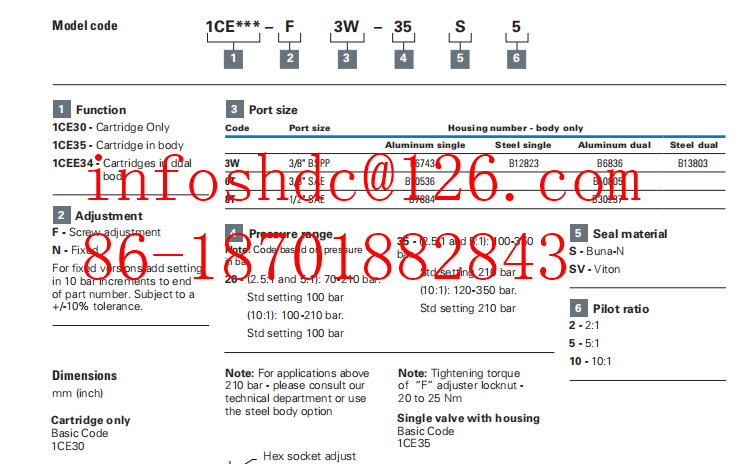

Basic Code
1CE30 = Cartridge Only
1CE35 = Cartridge and Body
1CEE34 = Cartridges and Dual Body
Adjustment Means
F = Screw Adjustment
N = Fixed - State pressure setting required For fixed versions add setting in 10 bar increments to end of part number. Subject to a + -10% tolerance.
Port Sizes - Bodied Valves Only
3W = 3/8” BSP Valve & Cyl Port. 1/4” BSP Pilot Port
6T = 3/8” SAE Valve & Cyl Port. 1/4” SAE Pilot Port
8T = 1/2” SAE Valve & Cyl Port. 1/4” SAE Pilot Port
Seals
S = Nitrile (For use with most industrial hydraulic oils)
SV = Viton (For high temperature and most special fluid applications)
Pressure Range @ 4.8 l/min
20 = (2.5:1 and 5:1): 70-210 bar. Std setting 100 bar
(10:1): 100-210 bar. Std setting 100 bar
35 = (2.5:1 and 5:1): 100-350 bar. Std setting 210 bar
(10:1): 120-350 bar. Std setting 210 bar
Pilot Ratio
2 = 2.5:1
5 = 5:1 (Standard)

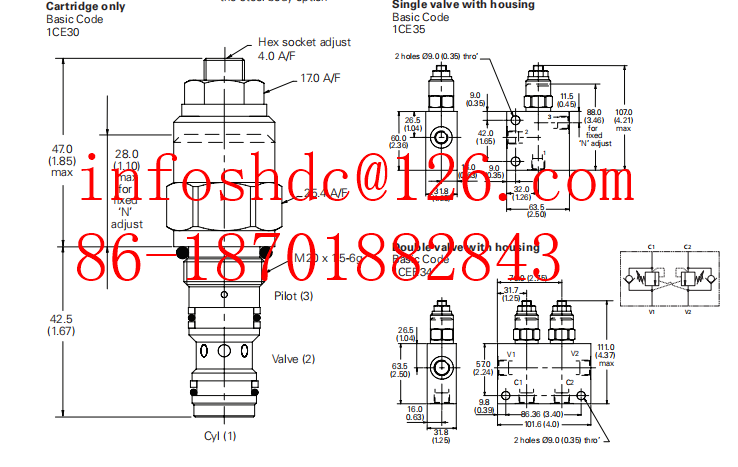

SINGLE VALVE BASIC CODE: 1CE35 3/8” 1/2” PORTS
Body ONLY part numbers
BSP, aluminium 3/8” B6743
SAE, aluminium 3/8” B10536 1/2” B7884
BSP, steel 3/8” B12823
SAE, steel 1/2” B11811
DUAL VALVE 3/8” 1/2” PORTS BASIC CODE: 1CEE34(INTERNALLY CROSSED PILOTED)
BSP, aluminium 3/8” B6836
SAE, aluminium 3/8” B10805 1/2” B30237
BSP, steel 3/8” B13803
SAE, steel 1/2” B11812
Eaton Vickers by Danfoss 406AA00005A Screw-in Cartridge Valves - 1CE30; Eaton Screw-in Cartridge Valve; Overcenter; Standard
Model Code: 1CE30-F-35S5
Feature Code Description
SERIES 1CE30 OVER CENTER VALVE -PILOT ASSISTED RELIEF WITH CHECK VALVE-30 L/MIN - CATRIDGE ONLY
ADJUSTMENT -F SCREW ADJUSTMENT
PORT SIZE _ CARTRIDGE ONLY
PRESSURE RANGE -35 100-350 BAR (2.5;1, 5;1) ; 120-350 BAR(10;1);STD SET - 210 BAR
SEAL S NITRILE (FOR USE WITH MOST INDUSTRIAL HYDRAULIC OILS)
PILOT RATIO 5 5;1
BODY MATERIAL _ NONE
SPECIAL FEATURE _ NO SPECIAL FEATURES
SPECIAL PRESSURE SETTING * SPECIAL PRESSURE SETTING IN BAR
GENERAL SPECIFICATIONS
PRODUCT NAME
Vickers by Danfoss 1CE30 Series Motion Control Valves
CATALOG NUMBER:406AA00005A
MODEL CODE:1CE30-F-35S-5
PRODUCT LENGTH/DEPTH:3.52 in
PRODUCT HEIGHT:1 in
PRODUCT WIDTH:1 in
PRODUCT WEIGHT:.33 lb
WARRANTY:Hydraulics Warranty
PRODUCT SPECIFICATIONS
INSTALLATION TYPE：Screw-in Cartridge
PORT SIZE：None
ADJUSTMENT TYPE：Screw
OPERATION：Pilot Operated
PRESSURE RATING：350 bar
NUMBER OF HOUSING PORTS：3
SEAL TYPE：Buna-N
MAXIMUM LOAD INDUCED PRESSURE
270 bar
CAVITY:A6610
NUMBER OF VALVE PORTS:3
PORT TYPE：Cartridge Only
STYLE：Pilot assisted relief with check
OPERATING TEMPERATURE:-30°C to +90°C
MAXIMUM RELIEF PRESSURE:350 bar
LEAKAGE:0.25 cc/min
SPECIAL FEATURES:None
MINIMUM PILOT ADJUSTMENT:40.5 bar
FLOW RATE:30 l/min
MAXIMUM PILOT ADJUSTMENT:49.5 bar
HOUSING:No
FLUID COMPATIBILITY:MIL–H–5606, SAE 10, SAE 20, etc
RECOMMENDED FILTRATION LEVEL:18/16/13
FUNCTION:Overcenter Valve
VALVE MATERIAL:Steel
APPLICATION:Harvesters, refuse haulers, mobile and industrial applications
PILOT RATIO:5:1
